Product Introduction

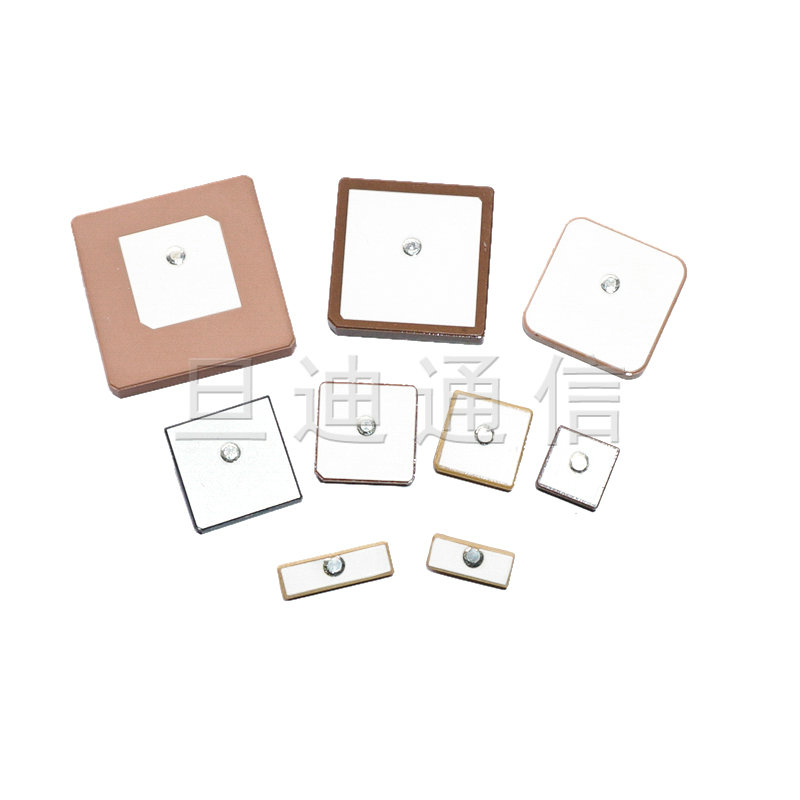

Model：

GPP-DDXXT4/2

Product Introduction：

Product Description ： 1、Low voltage ,low power consumption, high sensitivity, fast positioning supported 2、Mounting Method：Adhesive； 3、Center frequency can be customized； 4、The utility model can be widely used in portable ha

Product description

Product Description：
1、Low voltage ,low power consumption, high sensitivity, fast positioning supported
2、Mounting Method：Adhesive；
3、Center frequency can be customized；
4、The utility model can be widely used in portable handhold navigation and positioning equipment, industry navigation positioning equipment；

Product Introduction：

Model	Dimension (mm)	Center Frequency (MHz)	Bandwidth (MHz)	Gain (dBi)	Ground plane (mm)	Polarization
GPP-DD25T4	25×25×4	1575.42	≥10	4.0	70×70	RHCP
GPP-DD25T2	25×25×2	1575.42	≥10	3.5	70×70
GPP-DD20T4	20×20×4	1575.42	≥10	3.0	50×50
GPP-DD20T2	20×20×2	1575.42	≥10	2.5	50×50
GPP-DD18T4	18×18×4	1575.42	≥10	2.5	50×50
GPP-DD18T2	18×18×2	1575.42	≥10	2.0	50×50
GPP-DD15T4	15×15×4	1575.42	≥10	1.5	35×35
GPP-DD15T2	15×15×2	1575.42	≥10	1.0	35×35
GPP-DD12T4	12×12×4	1575.42	≥10	0.5	12×12
GPP-DD206T4	20×6×4	1575.42	≥8	-1.5	20×7	Linear
GPP-DD156T4	15×6×4	1575.42	≥6	-2.5	15×6	Linear
