Home > Products > Module products > Single LNA Module

Product Introduction

Model：

LAM-B5956

Product Introduction：

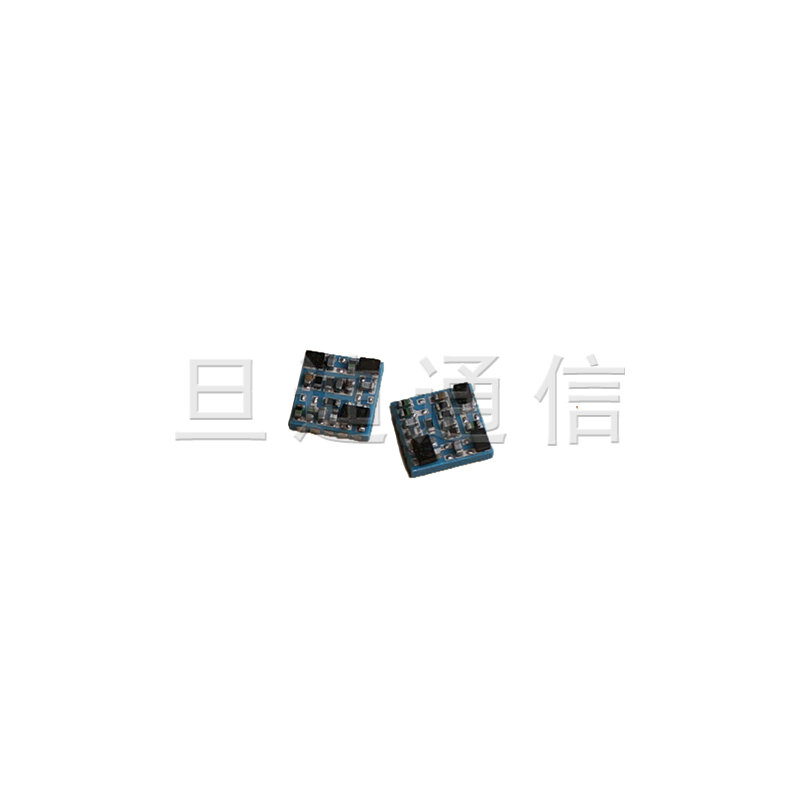

Product Description ： 1、IPD miniaturization design ，support GPS/BD2/GLONASS band； 2、Miniaturization, high performance, low cost, high reliability， dimension：5.6mmX5.9mmX1.4mm； 3、LNA, SAW filters, chip capacitors, inductors

Product description

Product Description：
1、IPD miniaturization design ，support GPS/BD2/GLONASS band；
2、Miniaturization, high performance, low cost, high reliability，
dimension：5.6mmX5.9mmX1.4mm；
3、LNA, SAW filters, chip capacitors, inductors and embedded LC capacitors, inductors;
4、The utility model can be widely used in a variety of portable handheld navigation and positioning equipment；

Product Dimension：

Product Introduction：

Antenna	Center Frequency	1550～1610MHz
	Gain	28±2dB
	Noise Figure	1.5dB max
	Ex-band Attenuation	40dB
	Voltage	DC 3.0~5.0V
	Current	10～13 mA
	1dB compression point output	-8 dBm
Environmental	Operating Temperature	-40℃ to +85℃
	Relative Humidity	Up to 95℃
	Environmentally Friendly	ROHS Compliant

Pin Definition

Pin#	Name	Description	Pin#	Name	Description
1	GND	Ground	6	GND	Ground
2	RFin	RF input	7	GND	Ground
3	GND	Ground	8	GND	Ground
4	3.3V	supply voltage	9	RFout	RF output
5	GND	Ground	10	GND	Ground
